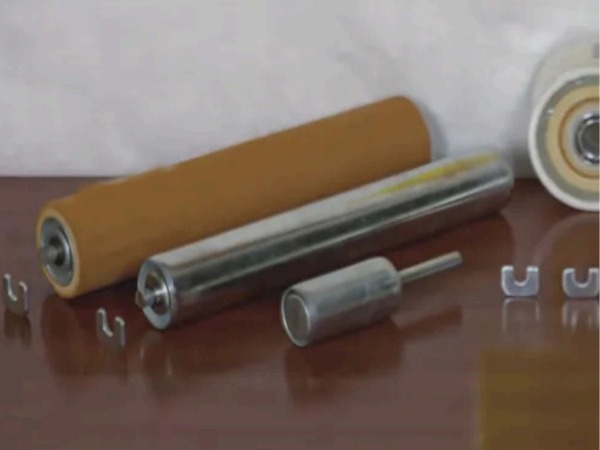

Precision galvanized steel conveyor rollers for aluminium extrusion lines — from the high-temperature initial table directly after the press to the finished product conveyor and side-guide rollers. Supplied with 15# Mitrix supports for easy installation.
High Temp
| Roller Type | Shaft Dia. (φ) | Outer Dia. (φ) | Body Length | Overall Length | Zone |
|---|---|---|---|---|---|
| Side Roller | φ15mm | φ50mm | 100mm | 180mm | Guide / Side |
| Finished Product Roller | φ15mm | φ50mm | 450mm | 480mm | Conveyor / Storage |
| Finished Product Roller | φ15mm | φ60mm | 450mm | 480mm | Conveyor / Storage |

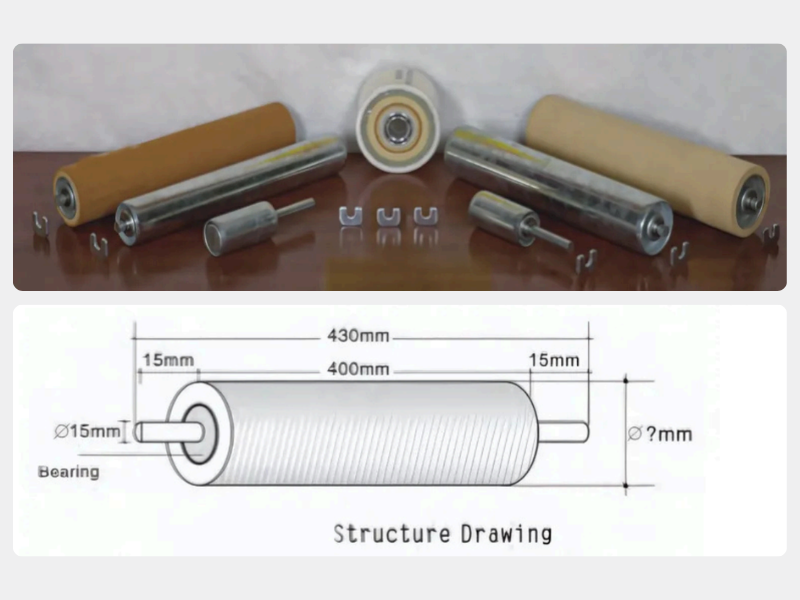

| Initial Table Roller | φ15mm | φ60mm | 400mm | 430mm | Initial Table (High Temp) |
| Initial Table Roller | φ15mm | φ76mm | 400mm | 430mm | Initial Table (High Temp) |
15# Mitrix supports (roller hanging brackets) are available to complement these rollers — allowing easy mounting and alignment on standard extrusion line frames.
φ60 and φ76 rollers support profiles at the press exit where temperatures are at their peak — before felt rollers take over.
Finished product conveyor rollers support profiles along the full run-out table length during cooling and transport.
Side rollers maintain straight-line travel of profiles along the conveyor, preventing edge damage from lateral contact.
Smooth galvanized finish on standard conveyor rollers ensures mark-free surface on finished aluminium profiles during storage handling.
Hot-dip galvanized surface resists corrosion in high-humidity extrusion environments and oil mist from presses.
φ15mm precision shaft with quality bearings ensures smooth, low-resistance rotation under profile load.
Pre-engineered to fit common extrusion line frame spacings — reduce custom engineering costs and lead time.
Matching Mitrix hanging supports allow fast installation and roller replacement without line modification.
