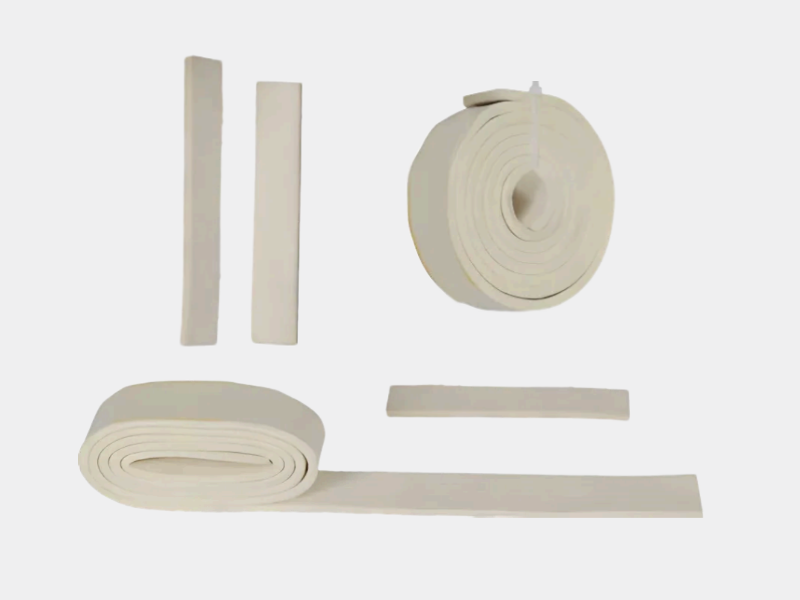

Two-side protection Nomex felt strips that wrap around iron racks to protect high-quality aluminium profiles from scratches during the aging oven process, profile transfer and secondary operations. Supplied in 20m rolls.
280°C
| Parameter | Value |
|---|---|
| Material | 100% Nomex |
| Color | Off White |
| Working Temperature | 280°C (consistent with aging oven process) |
| Standard Width | 30mm – 50mm |
| Length per Roll | 20,000mm (20m/roll) |
| Thickness Options | 6mm · 8mm · 10mm |
| Protection Type | Two-side protection (both faces of iron rack) |
Wrapped around iron rack flanges to cushion aluminium profiles during the aging oven cycle and prevent rack-induced marks.
Withstands 280°C consistent with aging oven temperatures — fully meets technical requirements for T5, T6 heat treatment.
Reduces scratches caused by iron racks during profile transfer between processing stages and during transit.
Ideal for architectural, anodized, and powder-coated profiles where surface quality is critical.

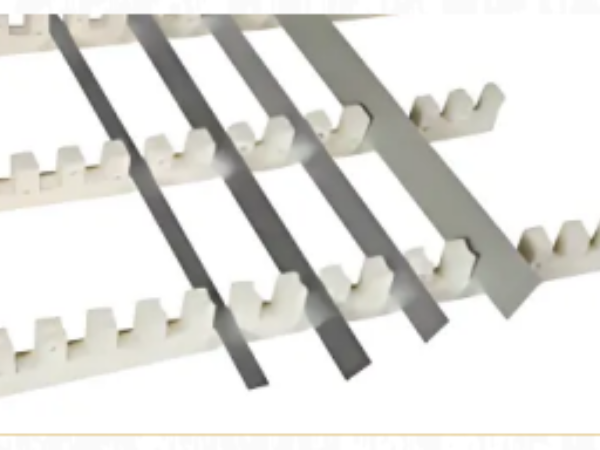

Felt strip wraps both sides of the iron rack flange, protecting the profile contact face from both directions.
Nomex material maintains performance throughout the aging process — no degradation at process temperatures.
Convenient 20m roll format makes installation quick and reduces changeover time on production racks.
Effective surface protection reduces profile rejections in second operations and transit, saving material and cost.
